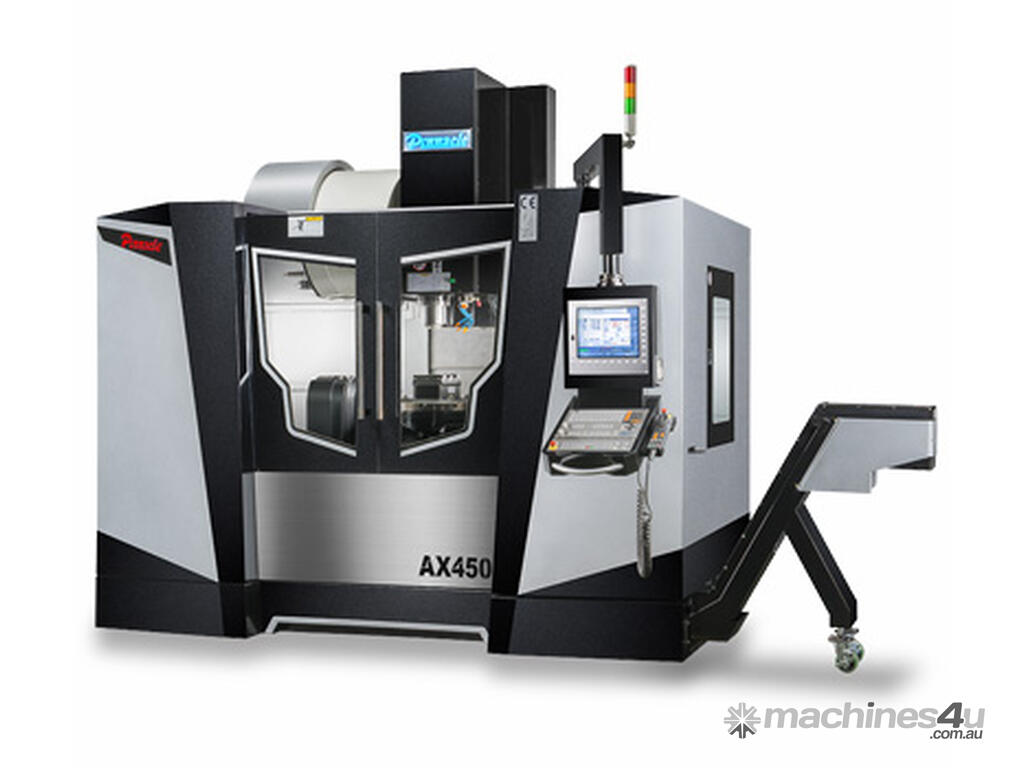

Pinnacle - 5 Axis Vertical Machining Center AX450

Lonsdale, SA - Delivers Nationally

New Pinnacle AX450 - CNC 5 Axes Machining Centre.

Main Features and Inclusions:

Travel:
• 760 mm x-axis travel
• 610 mm y-axis travel
• 560 mm z-axis travel

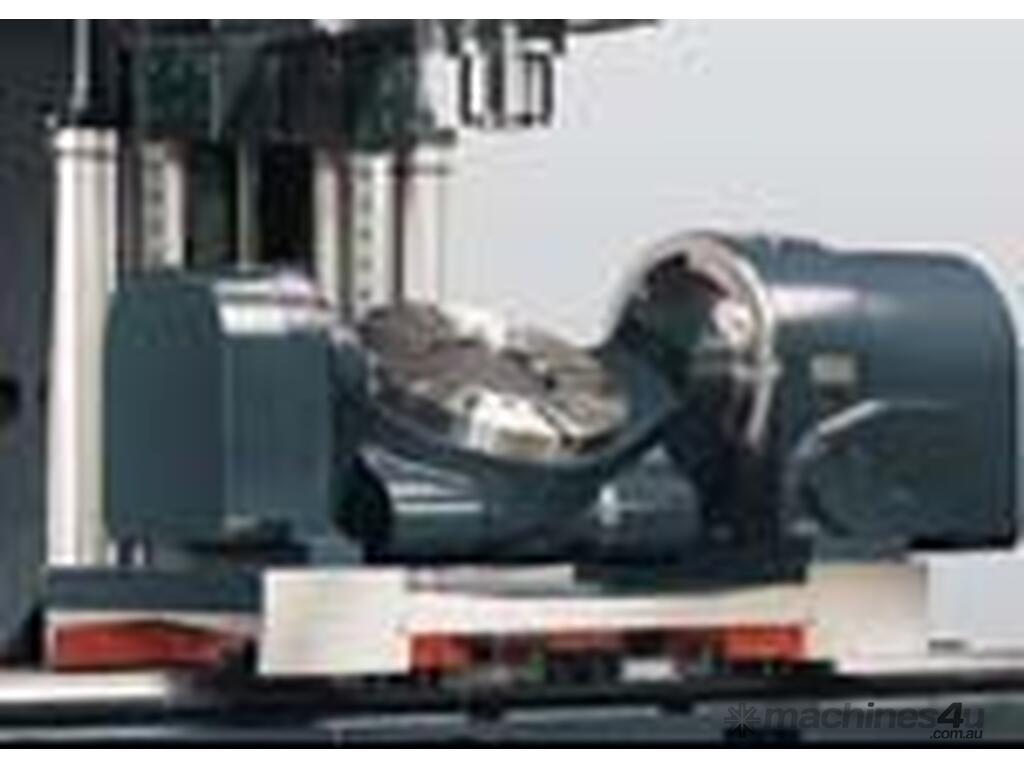

• A axis Tilt 220° (+/- 110°) 0.001°
• 360° C axis movement 0.001°


Table:
• Ø450 mm
• Max work piece ø550 x 305mm

Spindle:
• 10,000 rpm spindle speed (12,000/15,000) Direct drive
• 12 kW spindle motor
• 20,000 rpm Built in Spindle
• BT40 spindle taper


Feed rate:
• 30 m/min x-axis rapid traverse
• 30 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10,000 mm/min cutting feed rate

Automatic Tool Changer:
• BT40 tool shank
• 24 (30,40) Tools ATC Random Selection
• 250 mm Max tool length

Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003
• A Rotary axis (sec) 0.001°
• Repeatability Rotary axis 0.001°


General:
• Machine Floor Space: 3100 x 2390 x 3280 mm (L x W x H)
• Nett machine weight: 7,000 kg



Included:

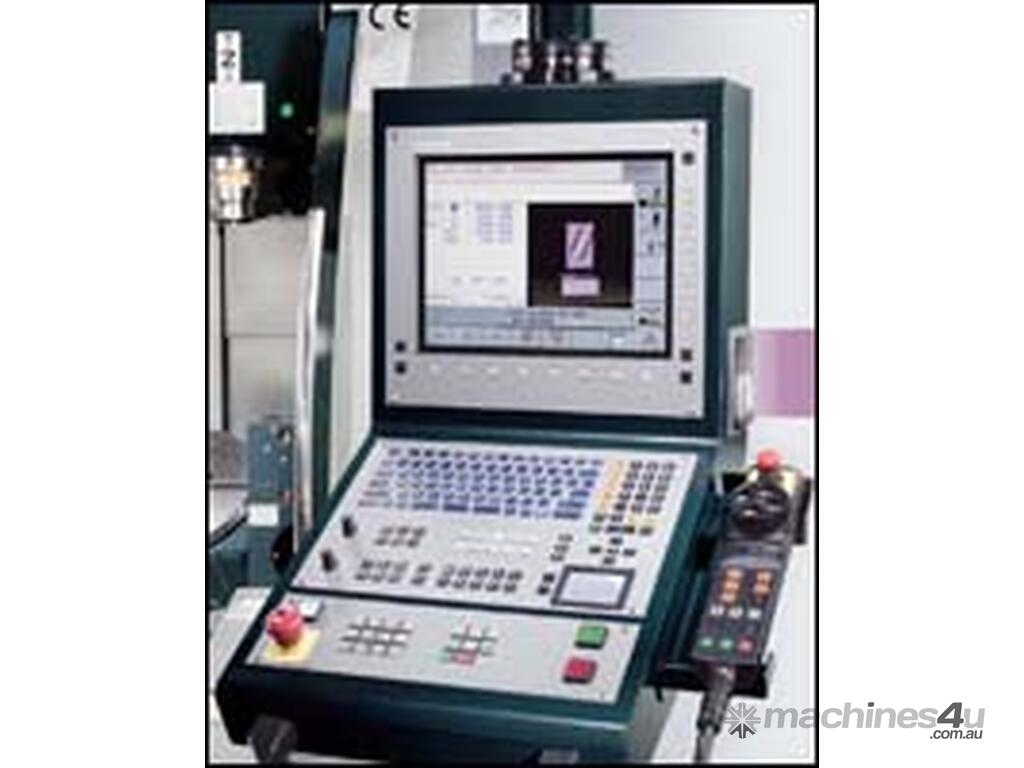

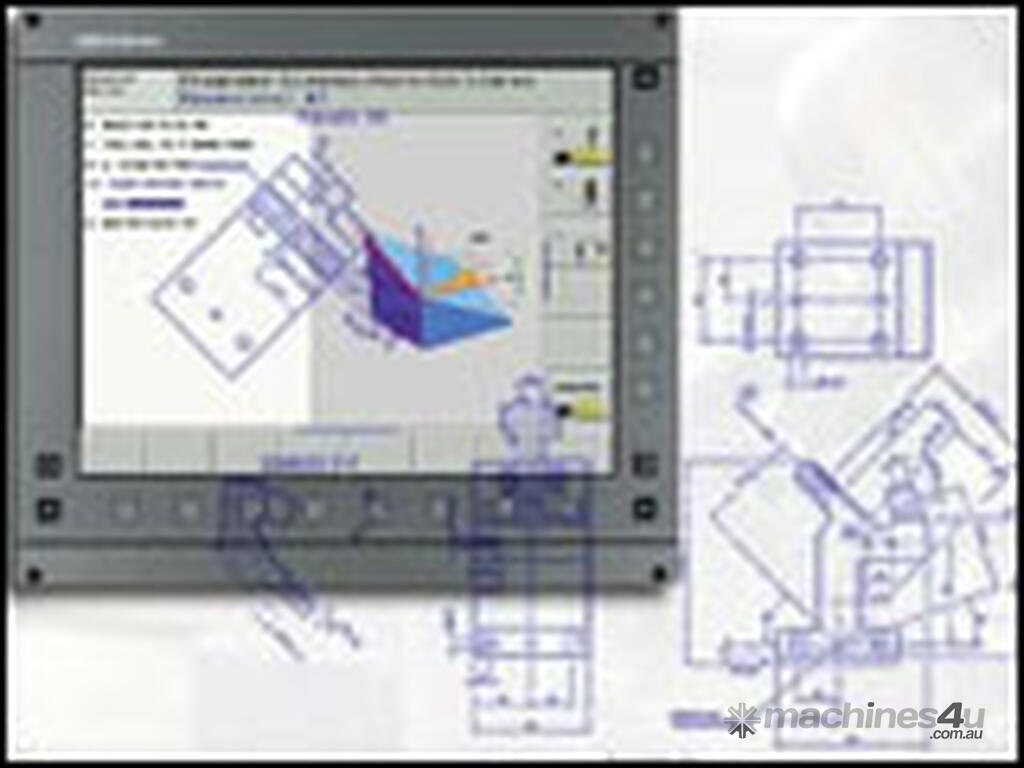

• Heidenhain ITNC 640 5 Axis simultaneously controlled axis
• DCM Dynamic Collision Monitoring software
• Plane Function Software
• Kenematic 3D touch probe software
• Tool Centre Point Management
• Renishaw Tool measurement system
• Renishaw OMP-600 Part probing system

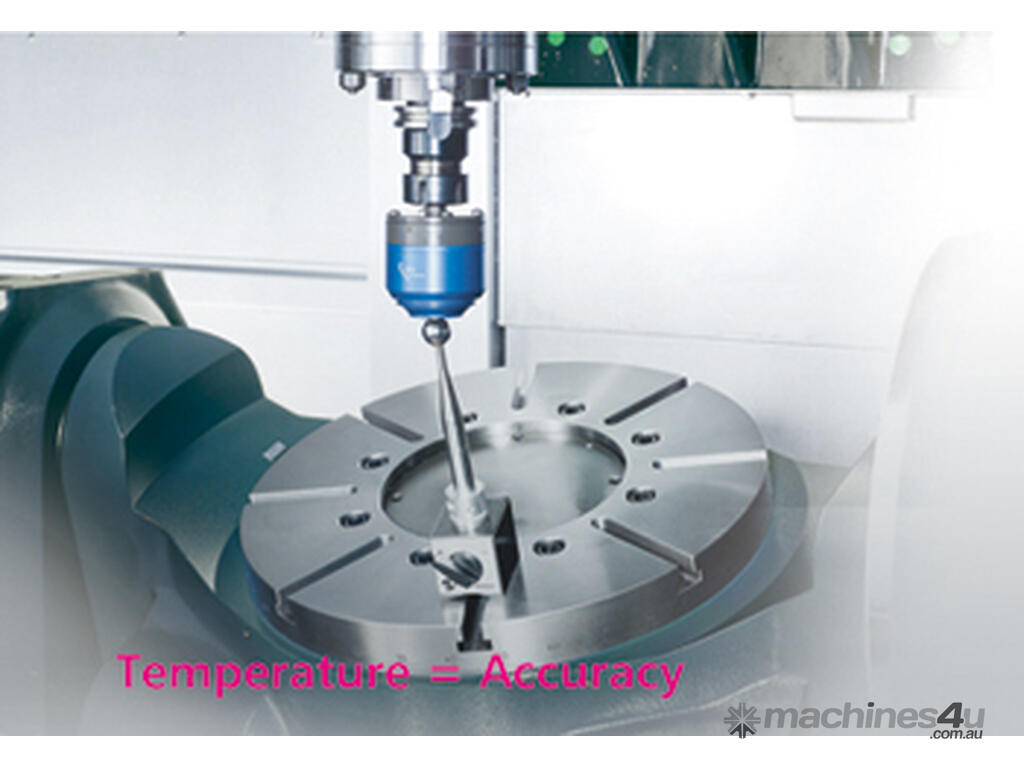

• Renishaw Datum Sphere

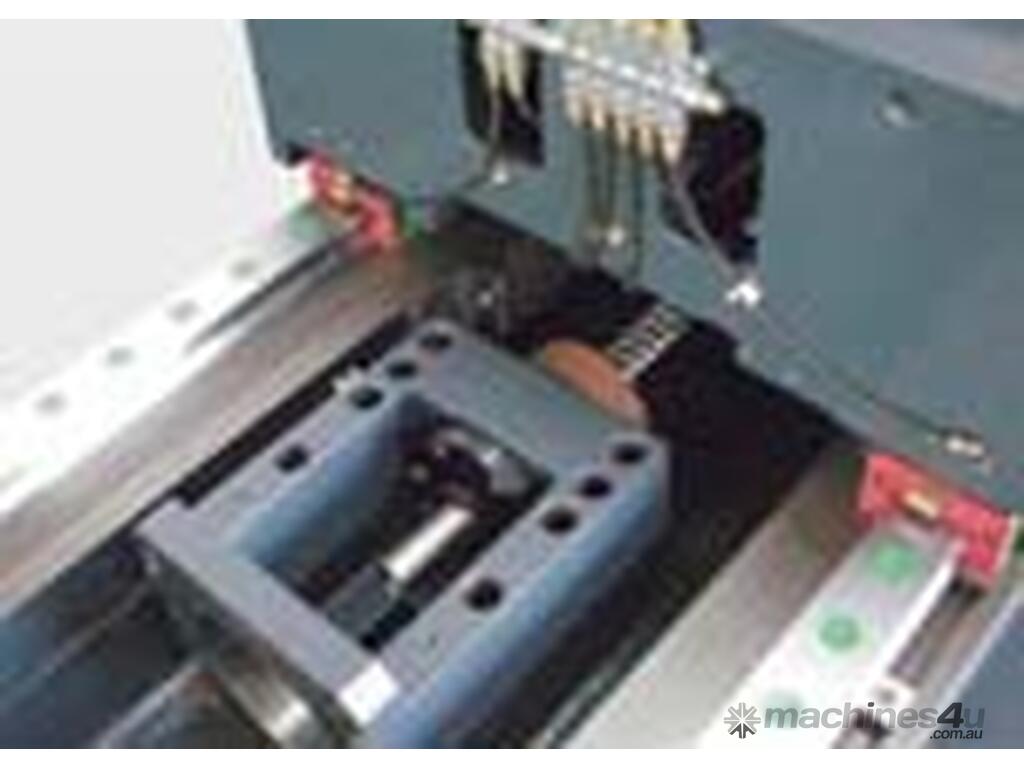

• Hollow ball screws with cooling system
• Rigid tapping
• A&C axis encoders
• Z axis pneumatic balance system
• Air blast through spindle
• Auto Lubrication system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast
• 10,000 rpm spindle speed standard
• Air-conditioned electrical cabinet
• 30 tools ATC (40 & 60 Options)
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales option
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
