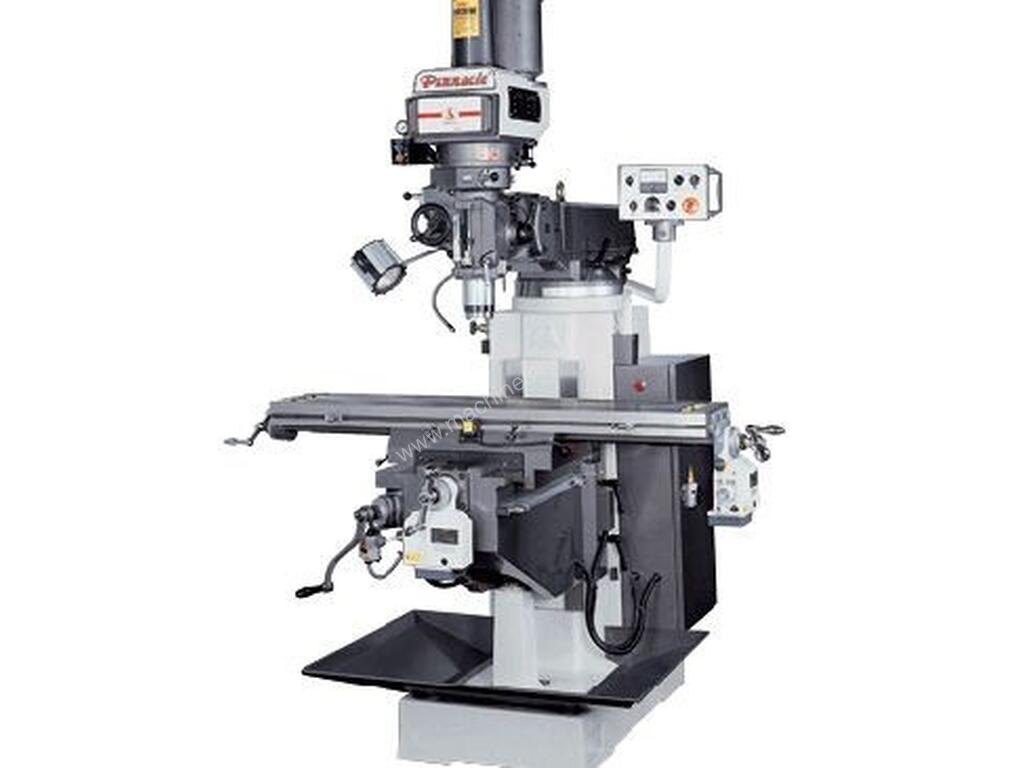

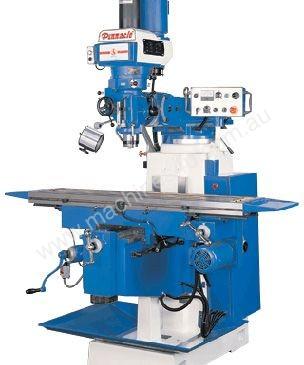

Pinnacle PKFV3 / PKFV2
Lonsdale, SA - Delivers Nationally -
-
-
Ask for More Photos
Pinnacle PKFV3 / PKFV2 : Ask for Price
The rigid and precision spindle is driven by a powerful inverter motor
60" x 12" working table with ground T-slots
High rigid precision spindle driven by 5 HP powerful motor
X,Y axes are driven by inverter motors
NT40# spindle taper
The X and Y axes slideways are coated with Turcite - B
The X, Y and Z axes slideways and top of working surface are hardened and ground
Square slideways on column and knee
MODEL PK-FV3
Table 1524 x 305 mm
TRAVEL
Longitudinal 800 mm
Cross 400 mm
Vertical 380 mm
SPINDLE
Taper NT40#
Dia. of Quill 100 mm
Spindle Travel 127 mm
Main Motor for Inverting 3.75 Kw
Inverter 3.75 Kw
Variable Speed 70 - 4200 R.P.M.
Quill Feeds Per. Rev. of Spindle 0.04 - 0.08 - 0.15 mm
Feed Motro ( X, Y, Z - Axis ) 0.375 KW / 0.375 KW / 0.2 KW
Feed Rate ( X, Y - Axis ) Min: 20 mm/min Max.: 2200 mm/min
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1550 Kgs
MODEL PK-FV2
Table 1372 x 254 mm
TRAVEL
Longitudinal 900 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
SPINDLE
Taper NT40#
Dia. of Quill 70 - 4200 R.P.M.
Spindle Speed 0.04 - 0.08 - 0.15 mm
Main Motor for Inverting 3.7 Kw 3PH
Inverter 3.7 Kw 3PH
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1450 Kgs
