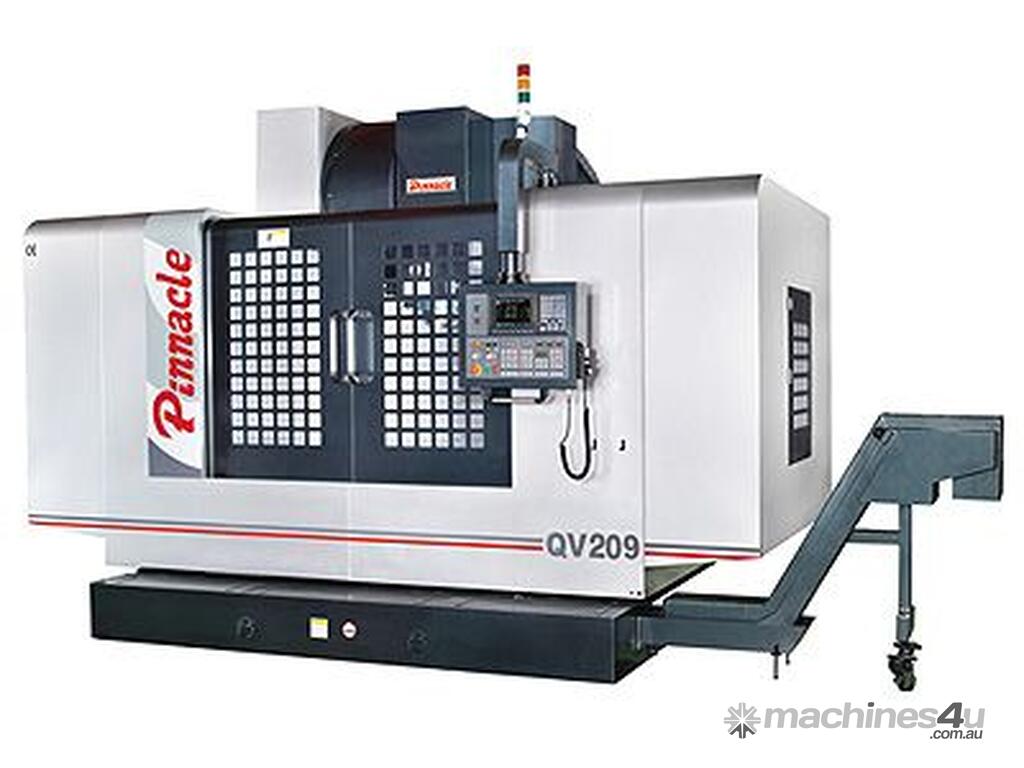

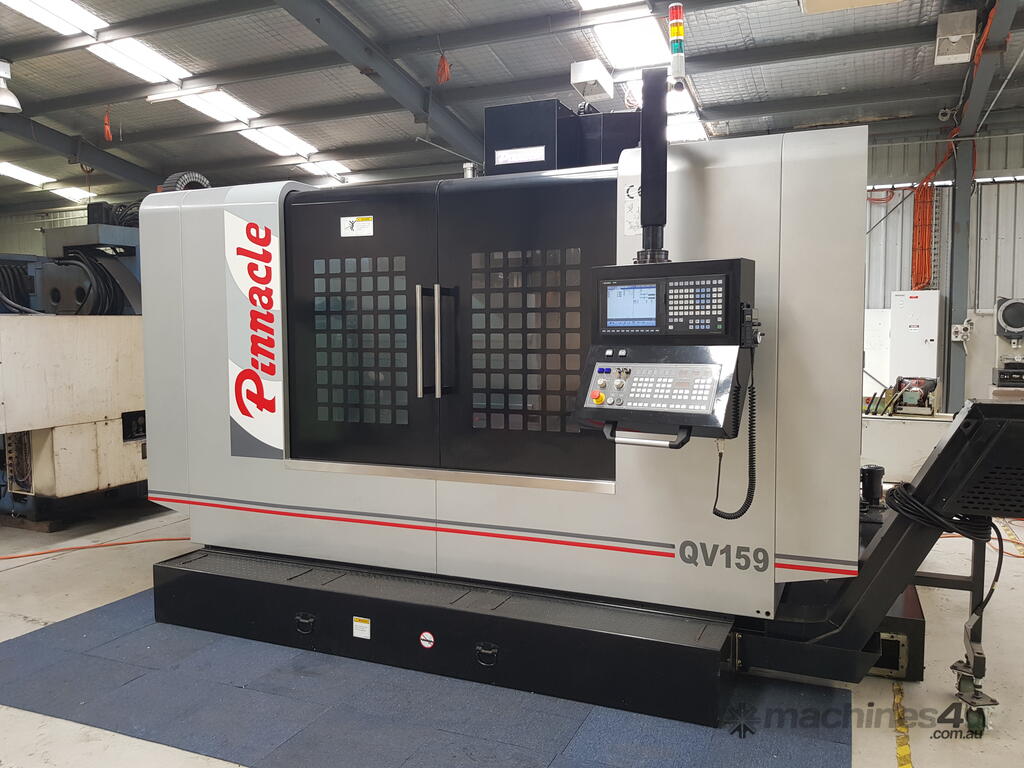

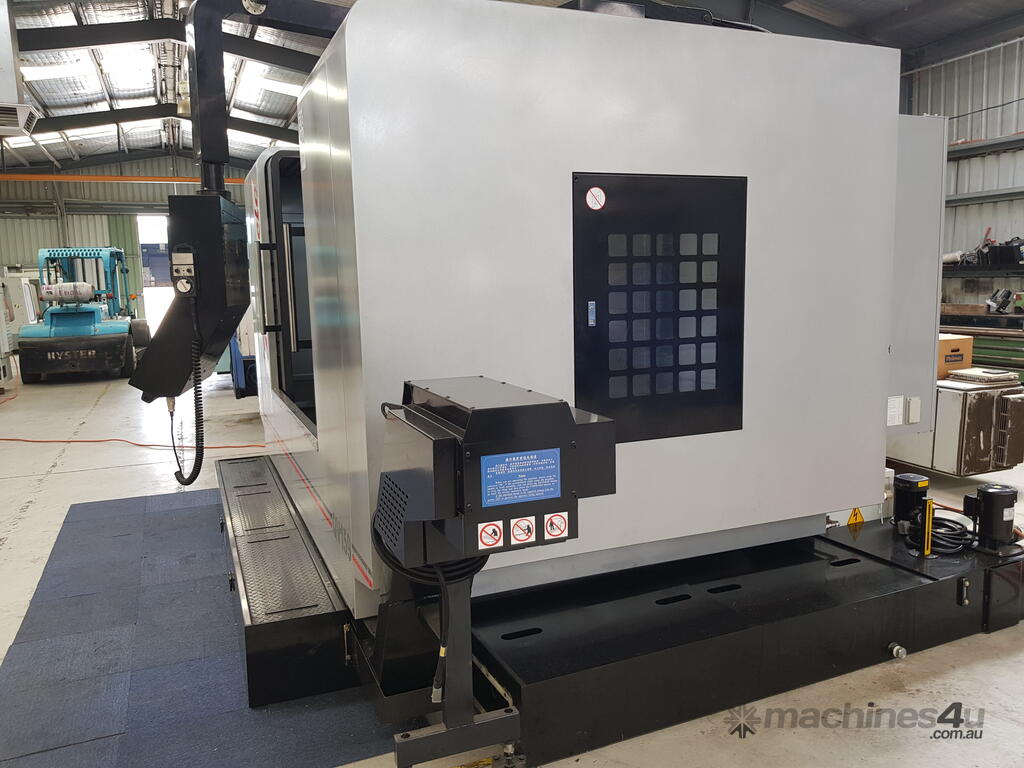

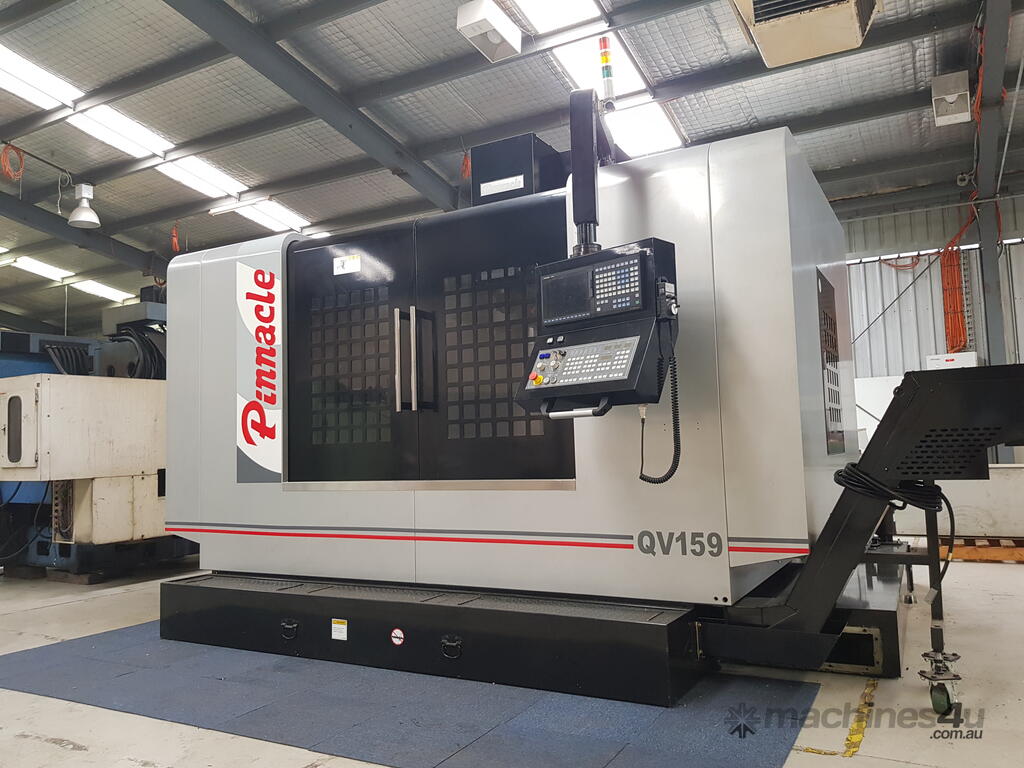

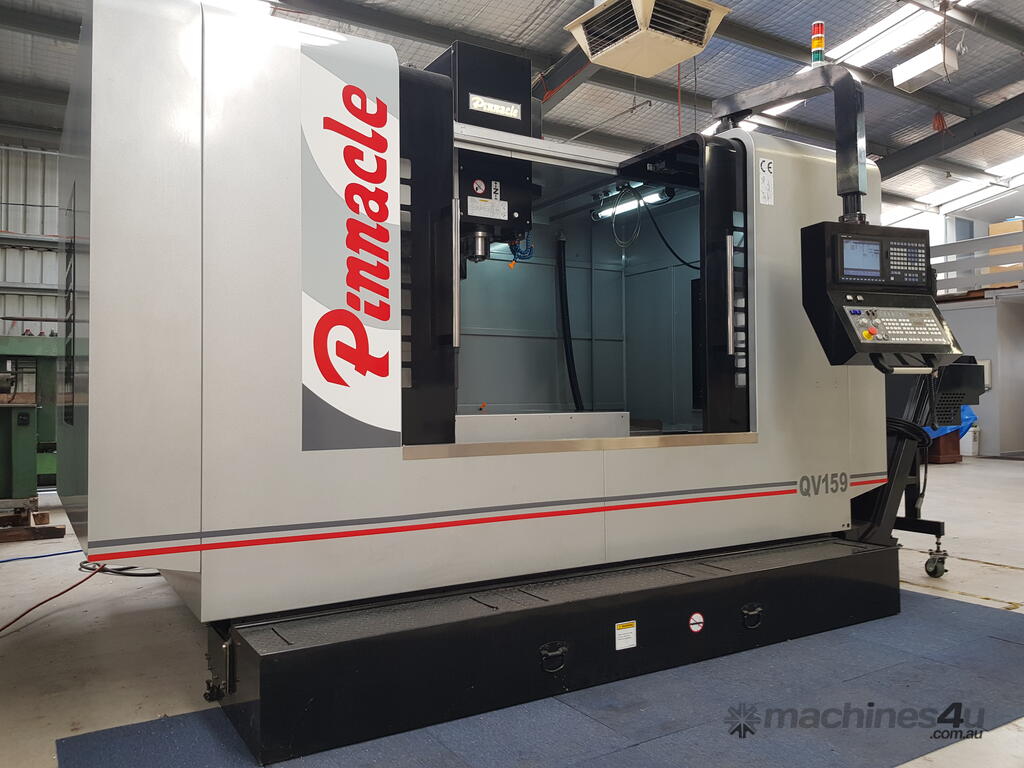

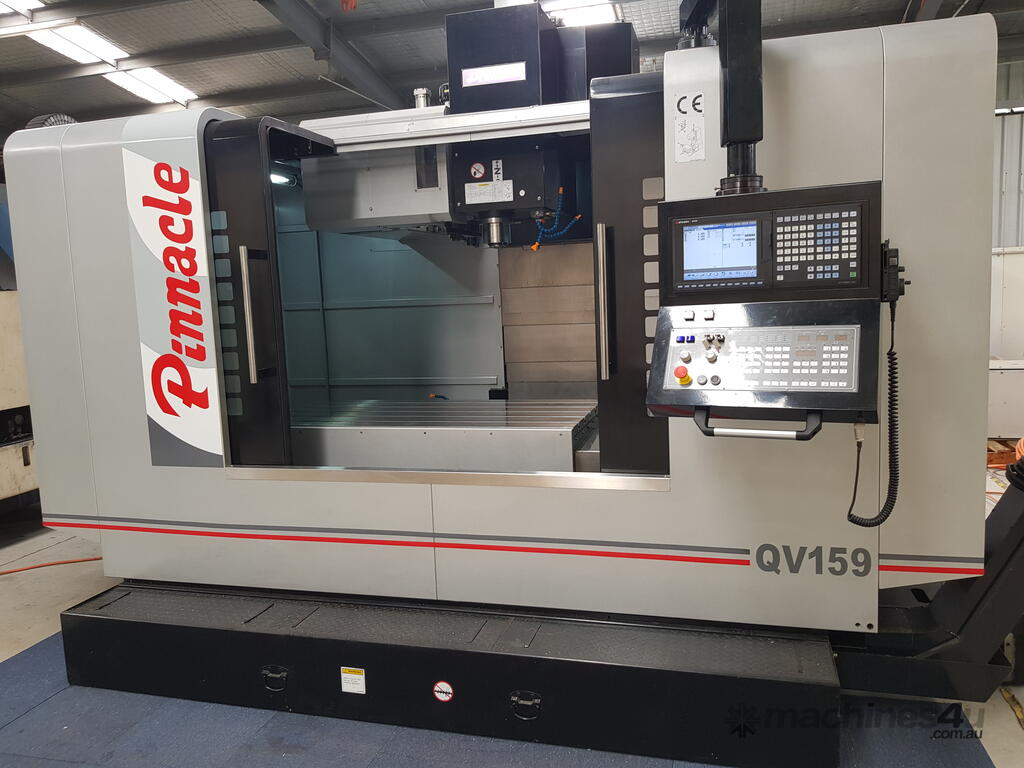

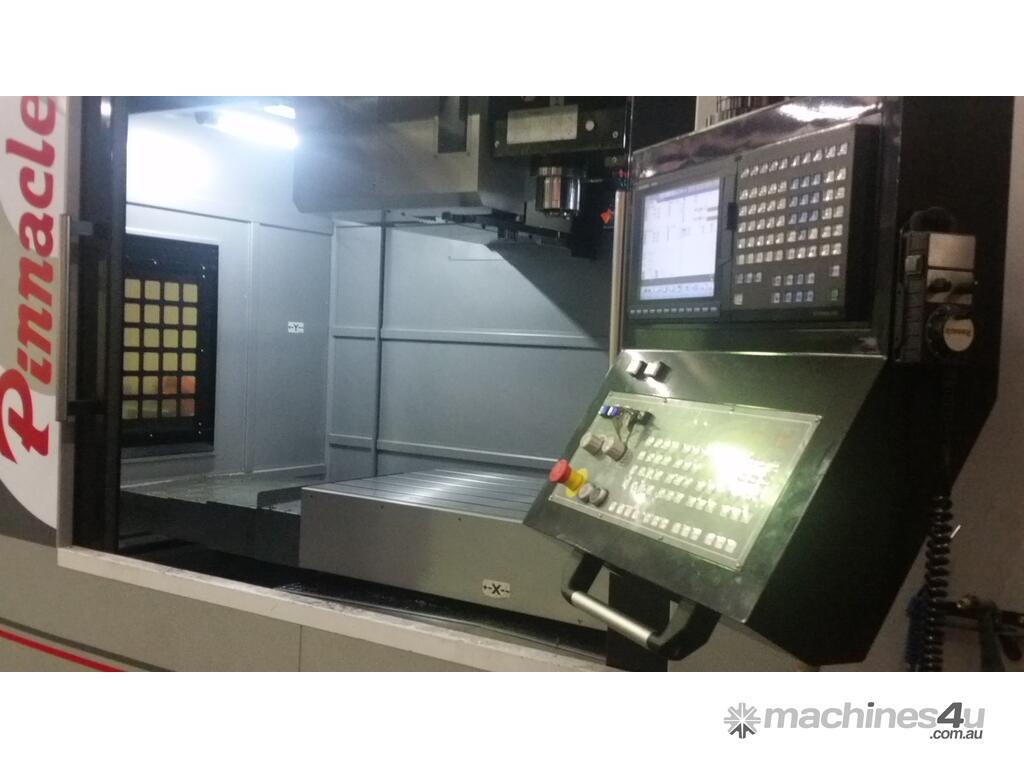

Pinnacle - Vertical Machining Center - Box Guide Ways QV159, QV179, QV209
Lonsdale, SA - Delivers Nationally -
-
-
-
+16
Pinnacle - Vertical Machining Center - Box Guide Ways QV159, QV179, QV209 : Ask for Price

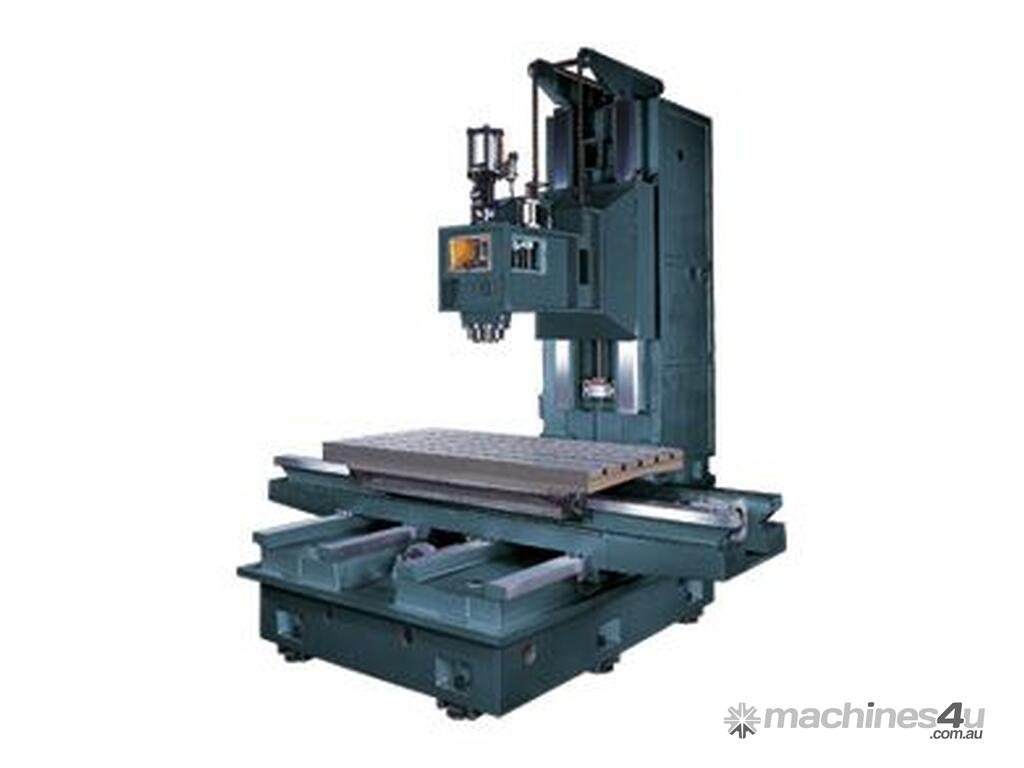

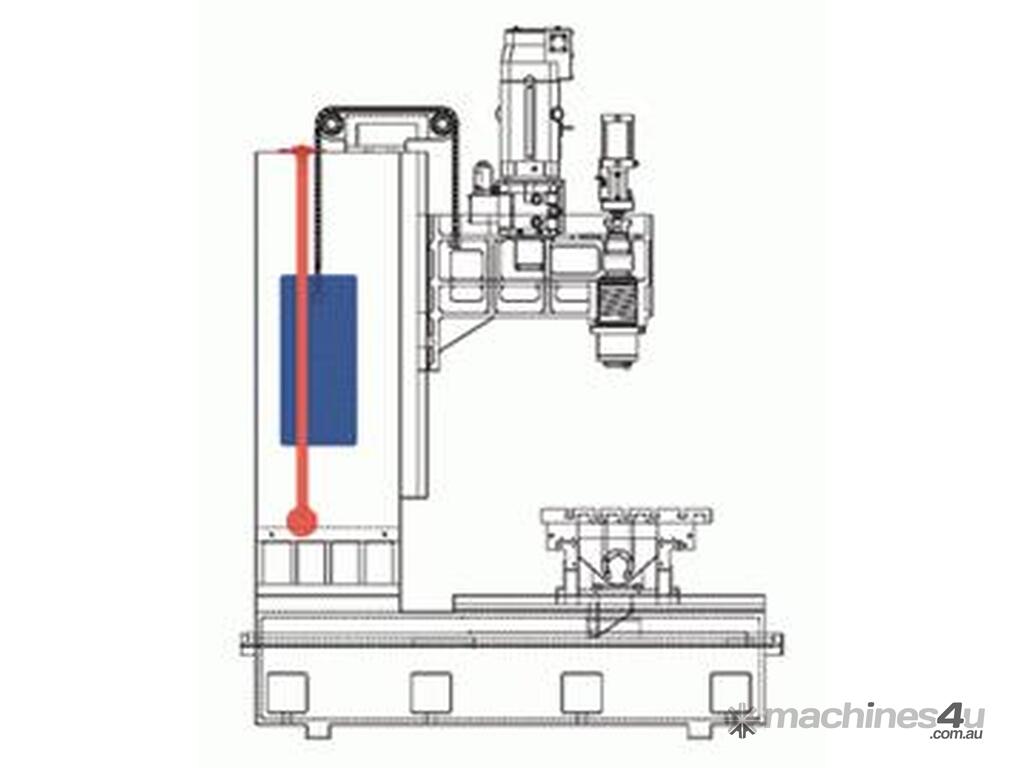

Rugged Construction Assures Optimum Rigidity and Stability.
New Pinnacle QV159/ QV179 / QV209 - CNC Vertical Machining Center. – Linear Guide Ways
Main Features and Inclusions:
Travel:

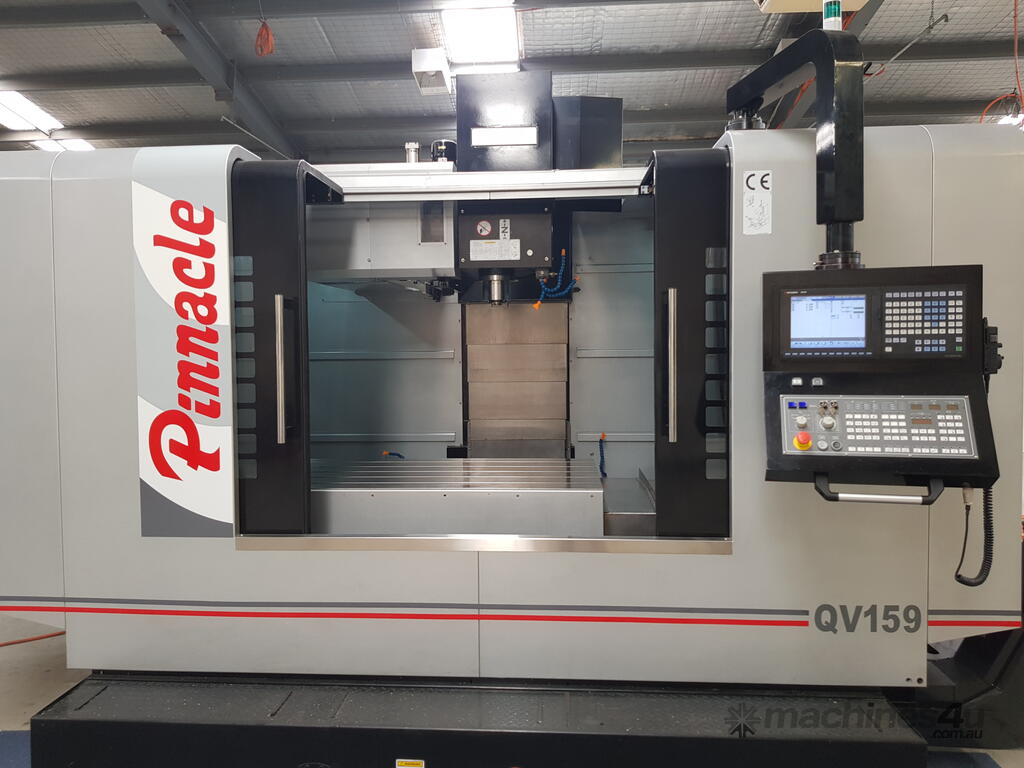

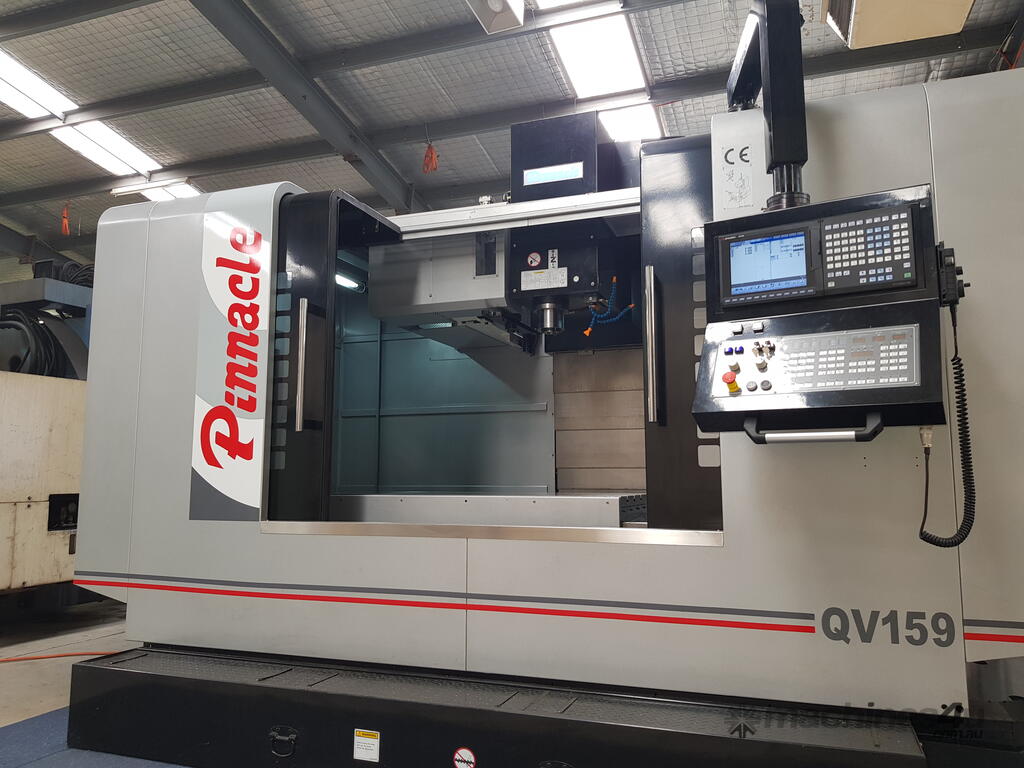

QV159
• 1500 mm x-axis travel
• 900 mm y-axis travel
• 850 mm z-axis travel
QV179
• 1700 mm x-axis travel
• 900 mm y-axis travel
• 850 mm z-axis travel
QV209
• 2000 mm x-axis travel
• 900 mm y-axis travel
• 850 mm z-axis travel

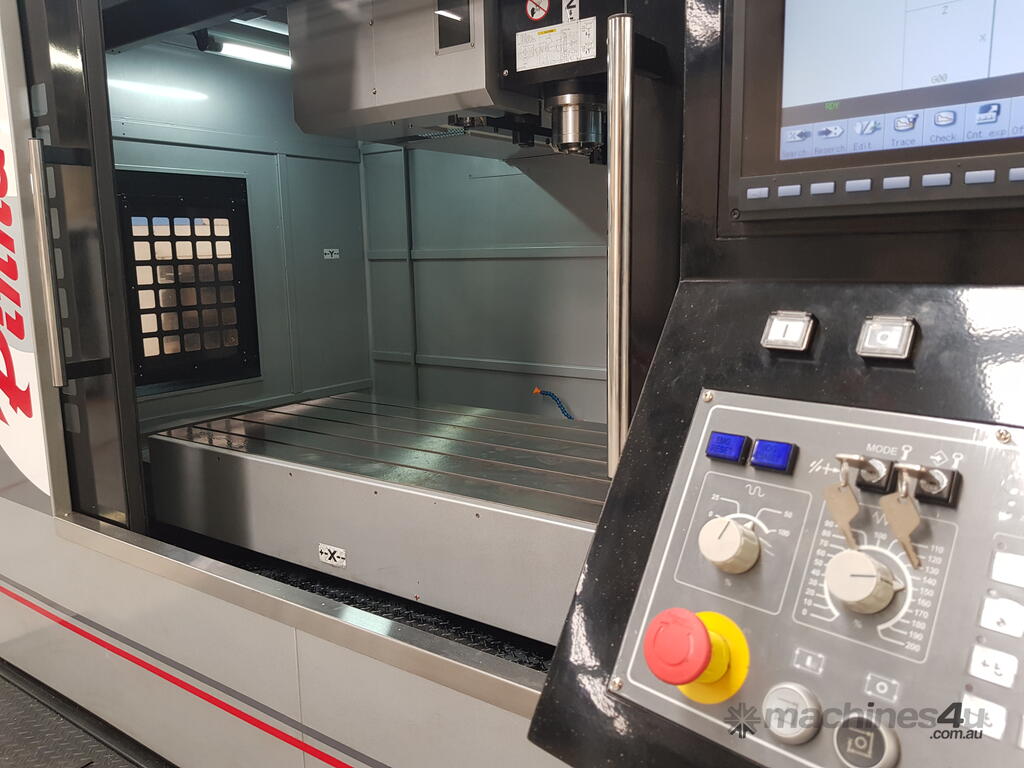

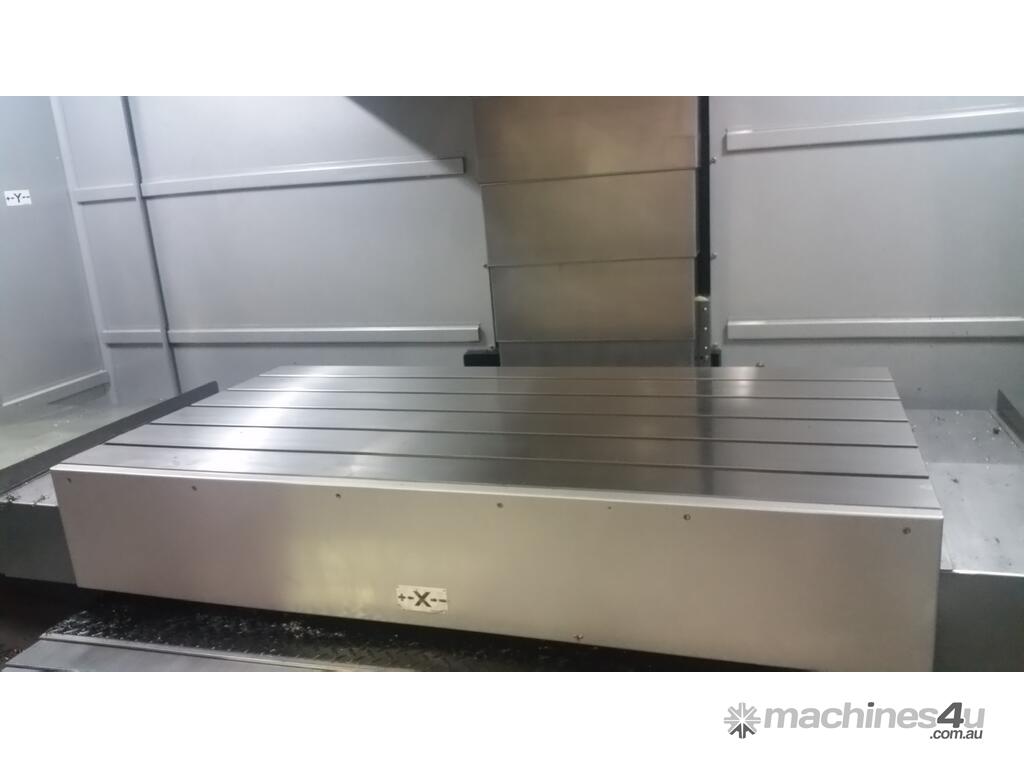

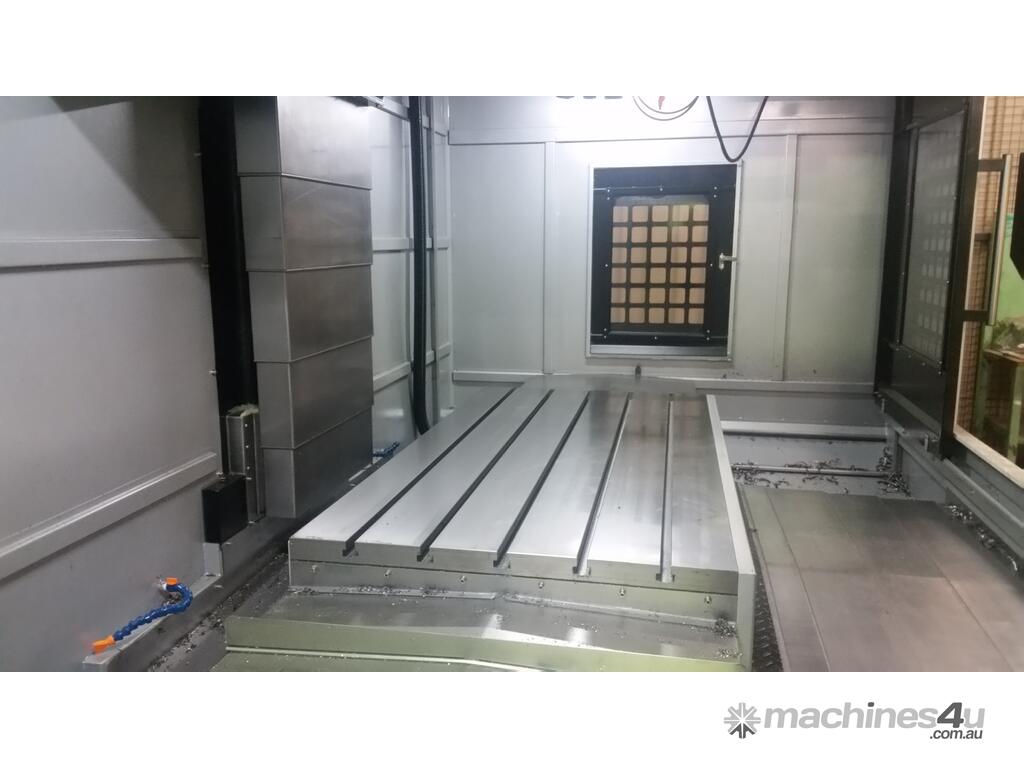

Table:
• 1700 mm x 850 mm – QV159
• 2000 mm x 850 mm – QV179
• 2200 mm x 850 mm – QV209

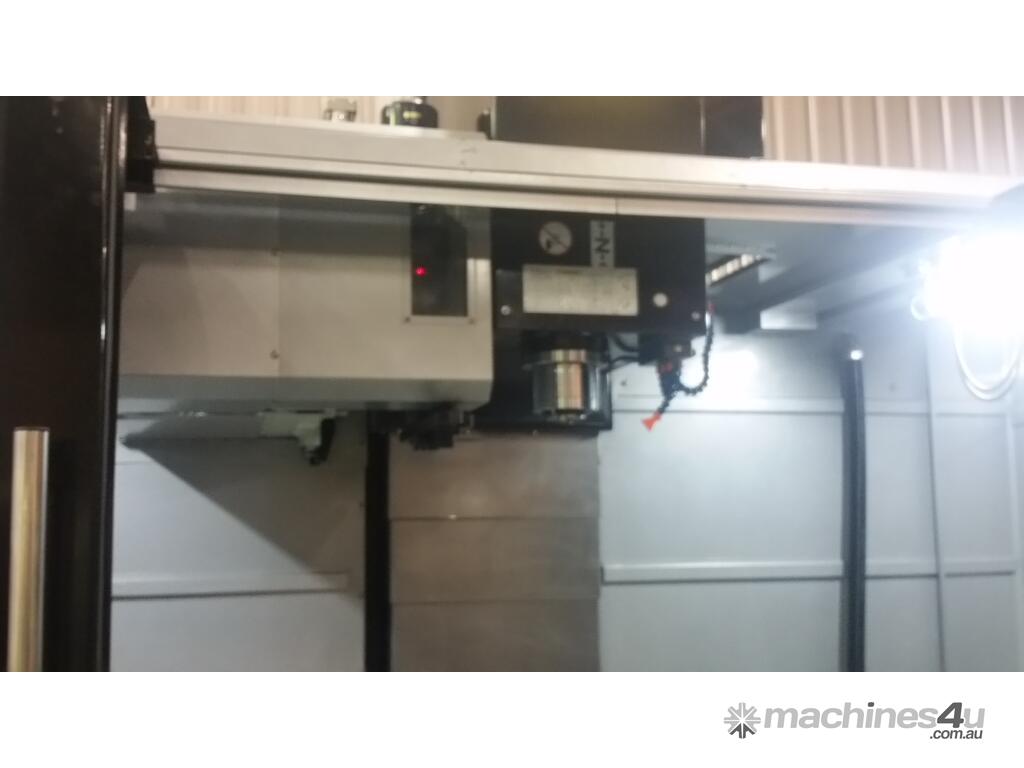

Spindle:
• 8000 rpm (10000/12000) spindle speed Direct Drive
• BT40 or BT50 your choice
• Geared spindle option
Feed rate:
• 24 m/min x-axis rapid traverse
• 24 m/min y-axis rapid traverse
• 12 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate
Automatic Tool Changer:
• 24 (32/40) Tools ATC Random Selection
• Arm type
• 350 mm Max tool length
General:
QV159
• Machine Floor Space: 4050 x 3300 x 3200 mm (L x W x H)
• Nett machine weight: 14,000 kg
QV179
• Machine Floor Space: 4450 x 3300 x 3200 mm (L x W x H)
• Nett machine weight: 15,000 kg
QV209
• Machine Floor Space: 5000 x 3300 x 3000 mm (L x W x H)
• Nett machine weight: 16,000 kg
Included:

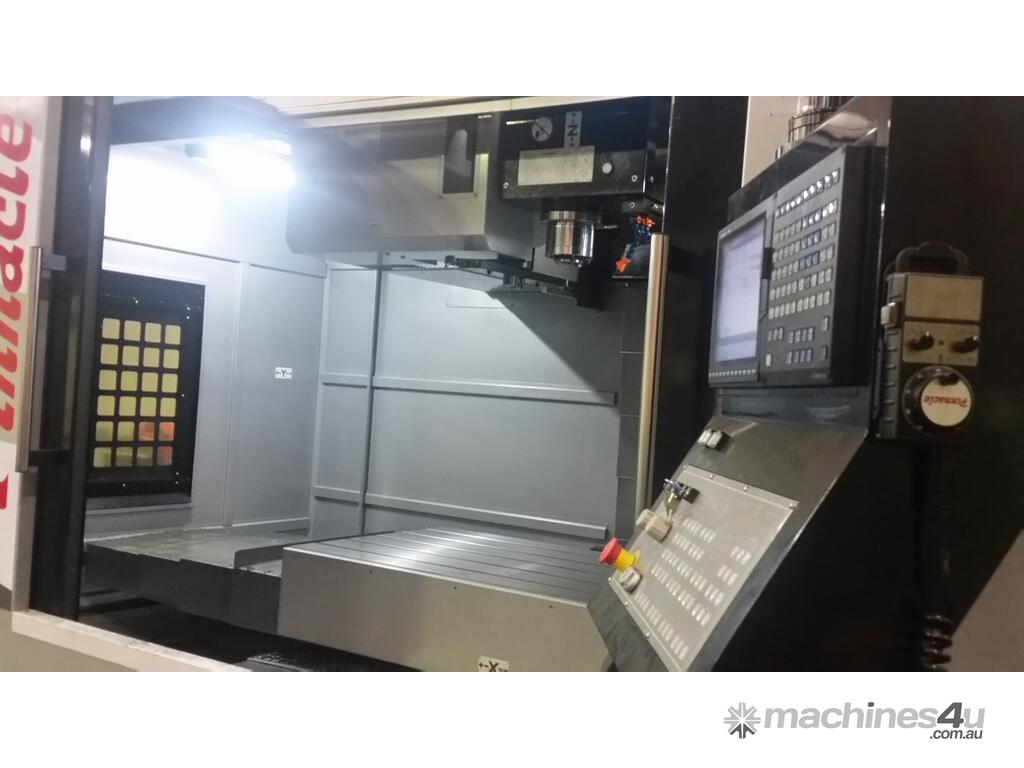

• Mitsubishi M80 / Fanuc Oi-MF / Heidenhain TNC620 Controller
• Air blast through spindle
• Air blast on workpiece
• Auto Lubrication system
• Spindle Chiller
• Spindle Air Blast

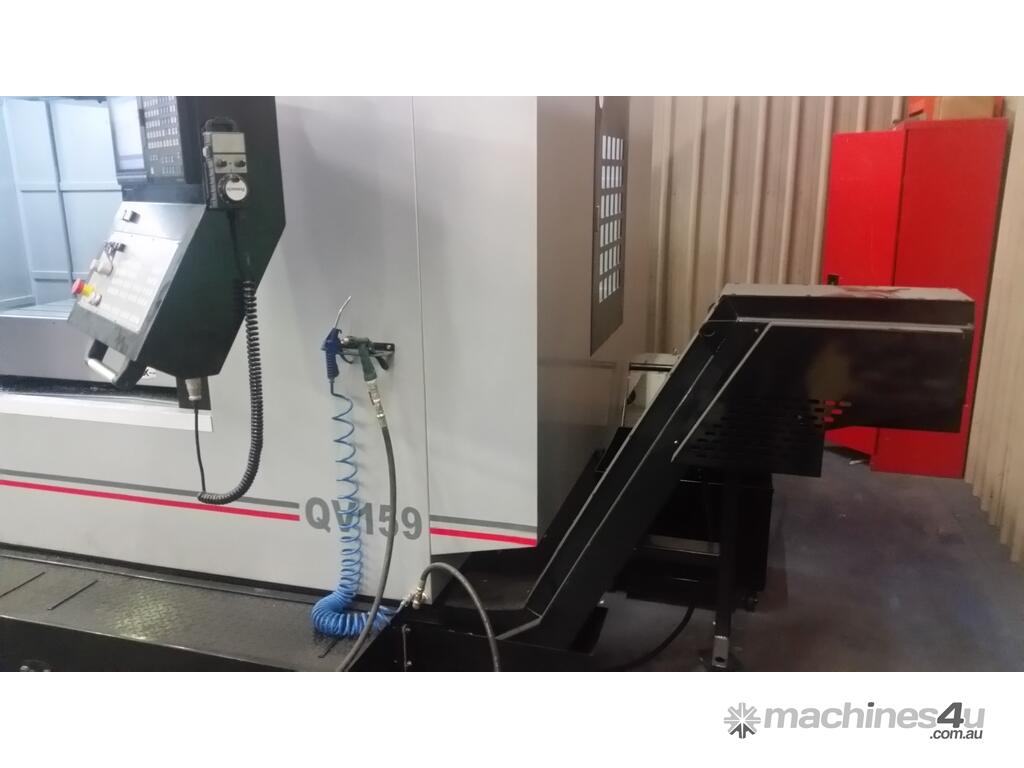

• Chip conveyor
• Air-conditioned electrical cabinet
• 8,000 rpm spindle speed standard

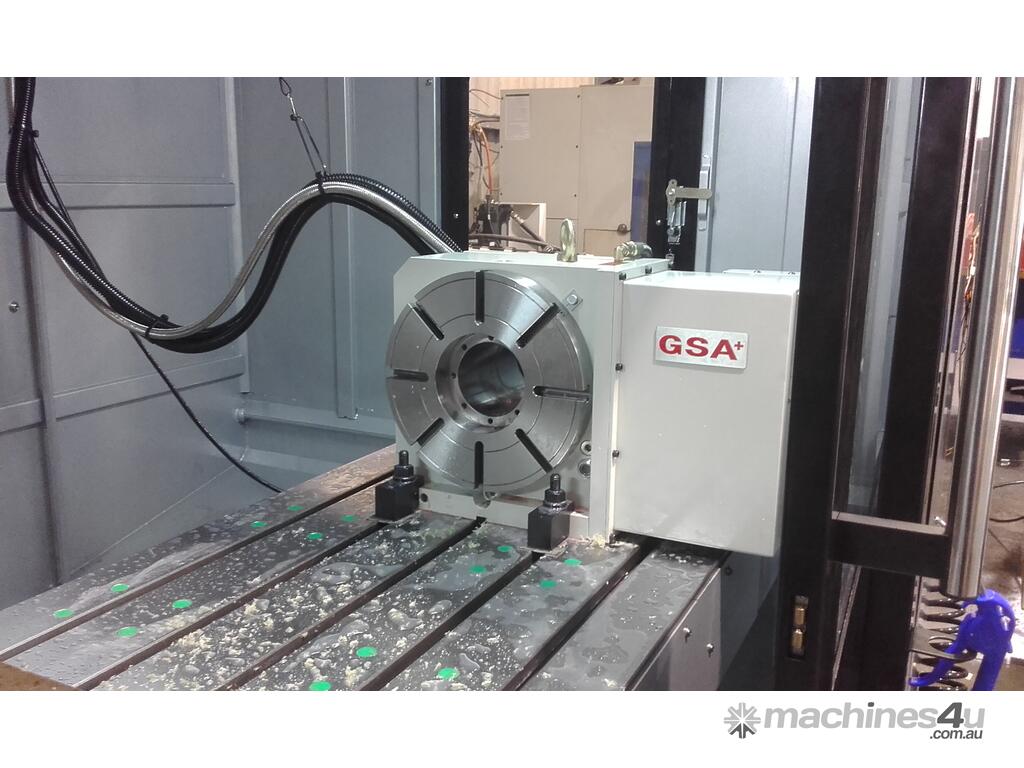

• 4th axis prepared
• Rigid tapping
• 24 tools ATC Arm type (30)
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer
Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
